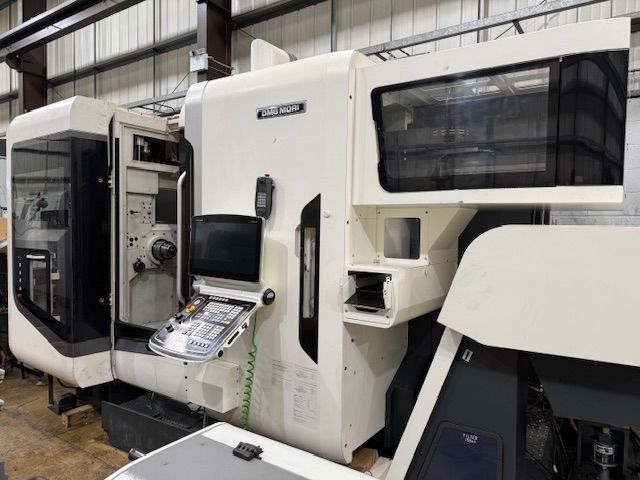

2020 DMG MORI NTX 1000 Gen II

Specifications

Swing Over Cross Slide 17.7”
Max Turning Diameter 16.9” Tool Spindle/10.7” Turret 2
Max Turning Length 31.4”
Bar Work Capacity 2.5”
Travel X1/Y/Z1/B 17.9”/4.1”/31.4”/120 D
Max Spindle Speed 5,000 RPM Spindle 1
Max Spindle Speed 6,000 RPM Spindle 2
Min B Axis Indexing .0001
Tool Spindle Speed 20,000 RPM
Taper Hole Tool Spindle Capto C5
Tool Magazine 76
Rapid Traverse Rate 1574.8-X-Y / 1968.5-Z/1417.3-A IPM
Chuck Size 8” Main and 8” Sub
Turret Positions 10

Equipped with

CELOS Siemens 840D SL Control
Hainbuch Spanntop Mini Pull back size 65 Collet Chuck
Chip Conveyor
Hydrafeed MSV65 Servo Driven Short Magazine Bar Feed Unit
Workpiece Unloader
Workpiece Ejector
Interfaced for Super High Pressure Coolant System
Rotary Window
Coolant Gun
Air Blow for Chuck
Mist Collector I/F
Oil Skimmer
Oil Mist Separator
Manual in machine Tool Presetter
Full Closed Loop Control for X Axis (Tool Spindle)
Full Closed Loop Control for X Axis (Turret 2)
Full Closed Loop Control for Y Axis (Tool Spindle)
Full Closed Loop Control for Z Axis (Tool Spindle)
Full Closed Loop Control for Z Axis (Turret 2)
In Machine Workpiece Measuring System (Renishaw RMP 600)
Tool Breakage Detection (BLUM Z Pico)
Signal Lamp 4 Colors
Bar feeder Interface
Dry Anchor
Multi Dry Filter
Manual Pulse Generator
Technology Cycle- 5 Axis Simultaneous Machining
Renishaw MULTI AXIS Inspection Software
