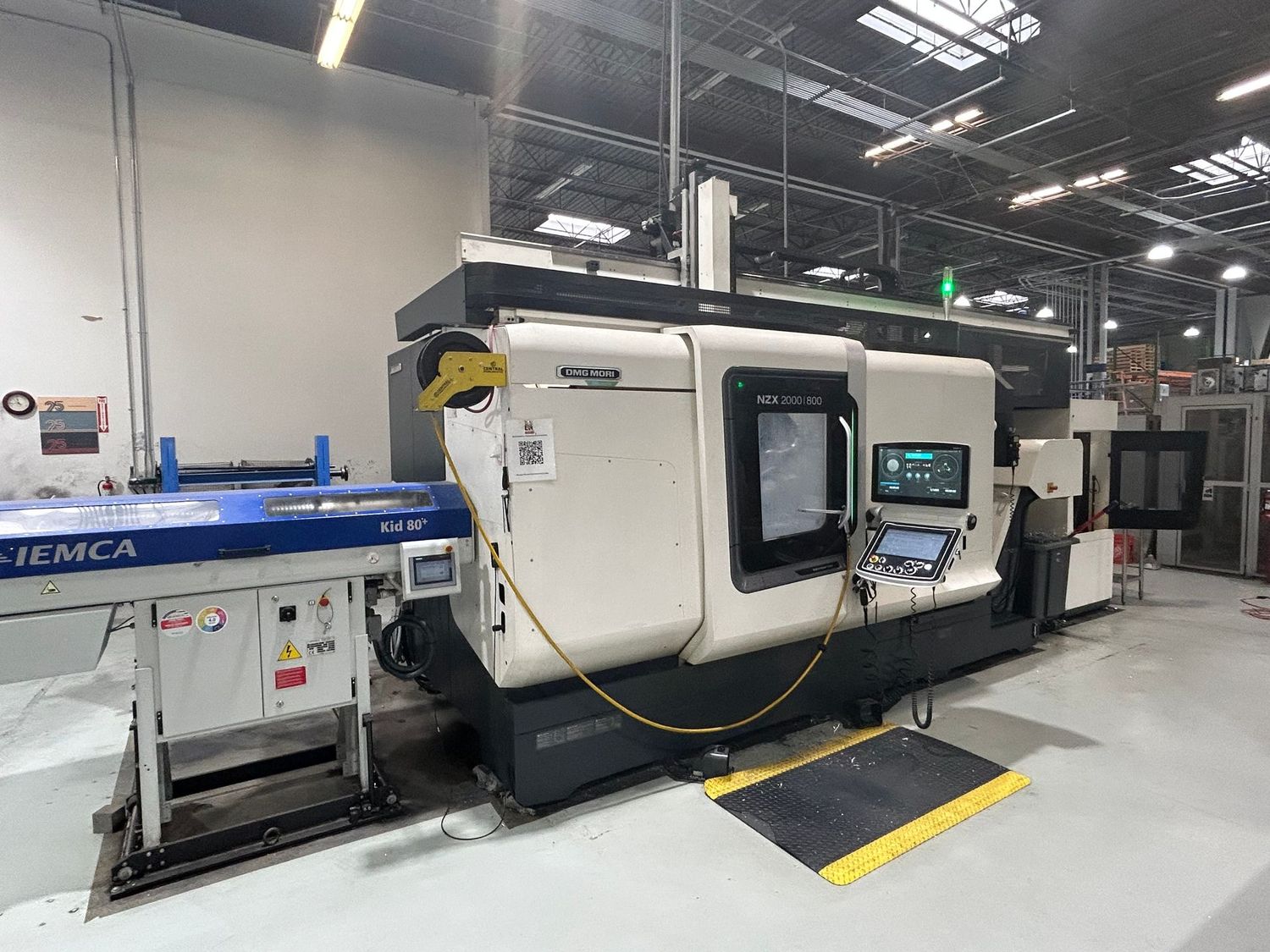

2021 DMG MORI NZX 2000/800 T3Y3

Specifications:

Swing Over Bed 31.5”
Max Turning Diameter 12.5”
Max Workpiece Delivery Dia 11.8”
Max Bar Work Capacity 3.1”
Travel X1/X2/X3 8.2”
Travel Y1/Y2/Y3 4.3”
Travel Z1 Z3 /Z2 11.8” / 31.8”
Spindle 1 / 2 Speed 4,000 / 5,000 RPM
Spindle Nose 1 / 2 A2-8 / A2-6
Through Spindle Hole 1 / 2 3.5” /2.8”
Turret Stations 1 / 2 / 3 16
Max Rotary Tool Speed 12,000 RPM (High Speed Option)
Rapid Traverse X / Y / Z 1181.1” / 787.4” / 1,968.5” IPM
Spindle Drive Motor 1 / 2 30
Chuck Size Main / Sub 10”/ 8”

Fanuc 31iB w/ CELOS ERGOline Control
Gantry Loader LG-10 Left Side
Workpiece Stocker 20 Station (Stacking Type)
Direct Scale Feedback X / Z
Tool Offsets 400 Sets in Total
Tool Presetter Spindle 1 / 2
Iemca Kid 80+ Bar Loader
Addition of Optional Block Skip
Chip Conveyor
