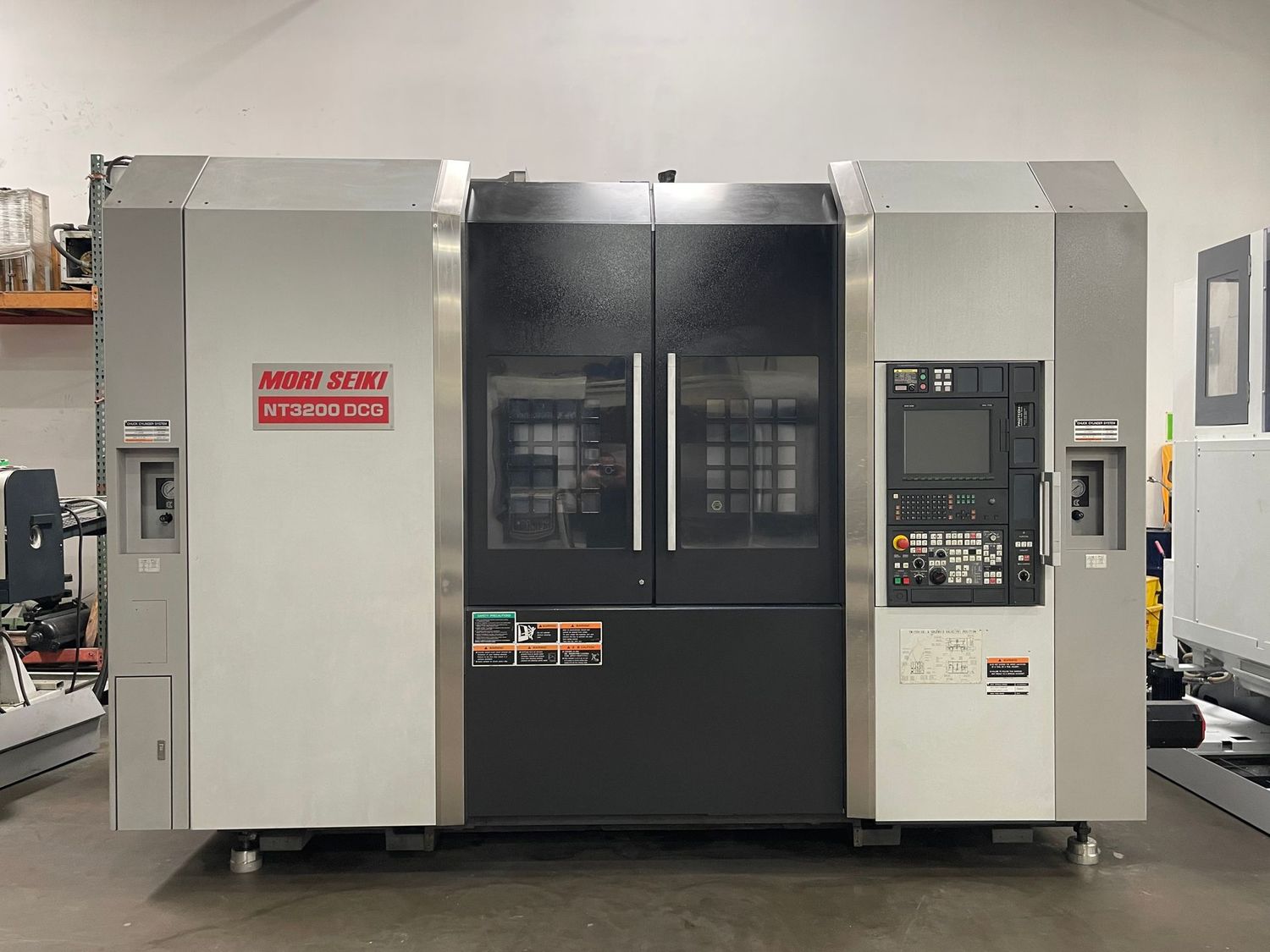

2007 MORI SEIKI NT-3200/1000SZ

SPECIFICATIONS:

- Mori MSX-711 Control

- (2) 5,000 rpm Turning Spindles

o Thru-Spindle hole dia. 2.9”

o Minimum Spindle Indexing Angle .0001 deg

- 12,000 rpm Milling Spindle

o 80 Tool Capacity Magazine

o Minimum B-Axis Indexing Angle 1 deg

o 240 Tool offsets

- 12 Station Lower Turret (Turret 2)

o Built-in Motor / All live-tooling capable – 6,000 rpm

o 64 Tool offsets

o Max. Workpiece Swing 23.6”

o Swing over Cross-Slide (Turret 2) 13.4”

o Max. Distance between Spindle Large Noses 49.4”

o Max. Turning Diameter (Tool-spindle Capto C5 = 23.6”, Turret 2 = 8.2”)

o Max. Turning Length 39.4”

o Bar Work Capacity 2.6” Dia.

Equipped With:

- Built-in Tool Presetter

- Chip Conveyor

- Tool Life Management
