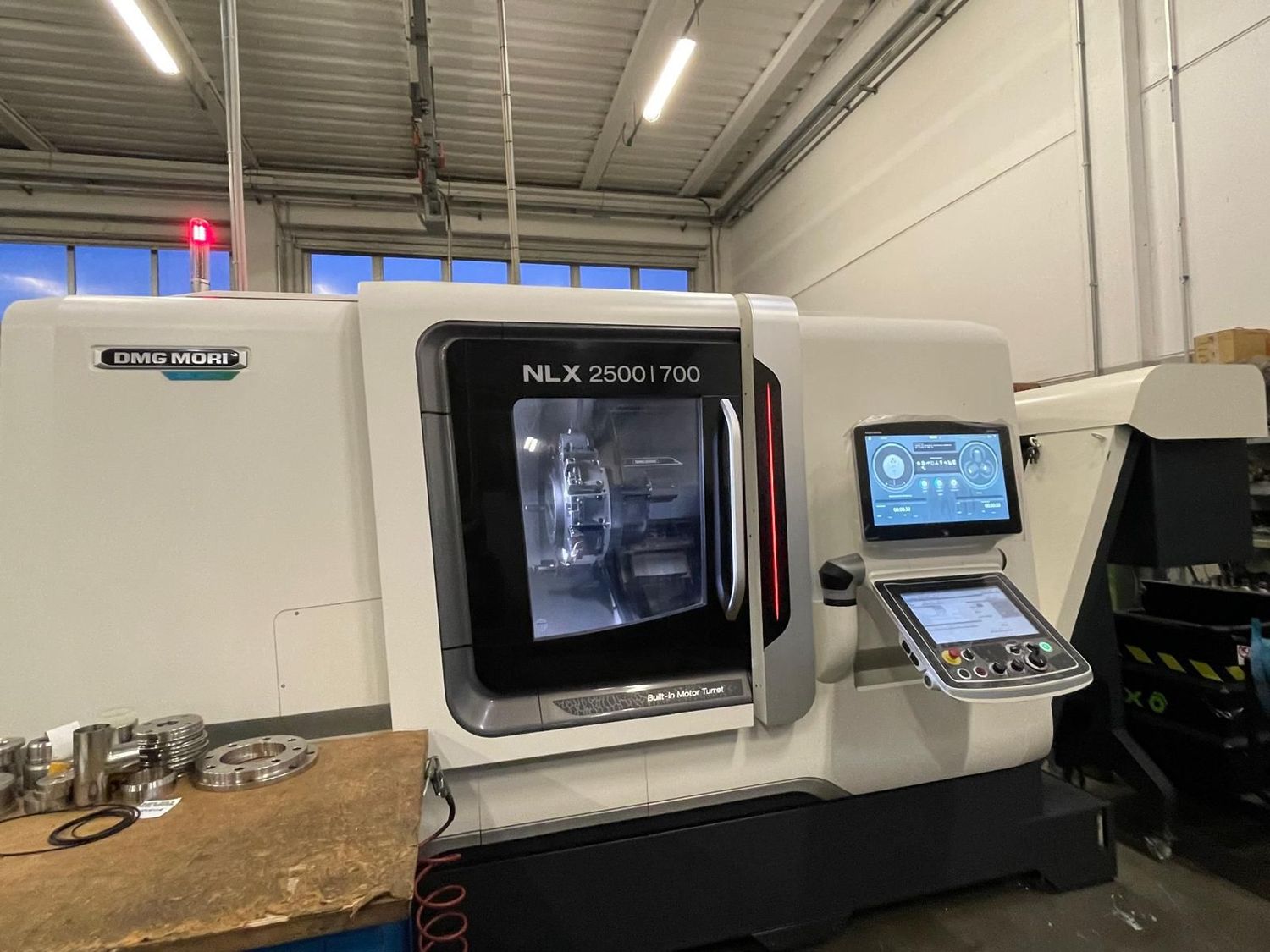

2022 DMG MORI NLX 2500Y/700

Specifications:

Swing Over Bed 36.2"
Swing Over Cross Slide 29.2"
Max Turning Diameter 14.0"
Max Turning Length 27.7"
Travel X/Y/Z 10.2”/+-2”/31.3”
Bar Capacity 3"
Spindle Bore Dia 3.5”
Max Spindle Speed 4,000 RPM
Rapid Traverse 1,181 IPM
Spindle Horsepower 25
Live Milling Speed 6,000 RPM
Turret Positions 12- All Live
Chuck Size 10” SMW AUTOBLOK
Spindle Nose A2-8

Equipped With:

M-730UM w/ CELOS ERGOline Control (MITSUBISHI)
Programmable Tailstock
Tool Presetter
Chip Conveyor
172 Hours
