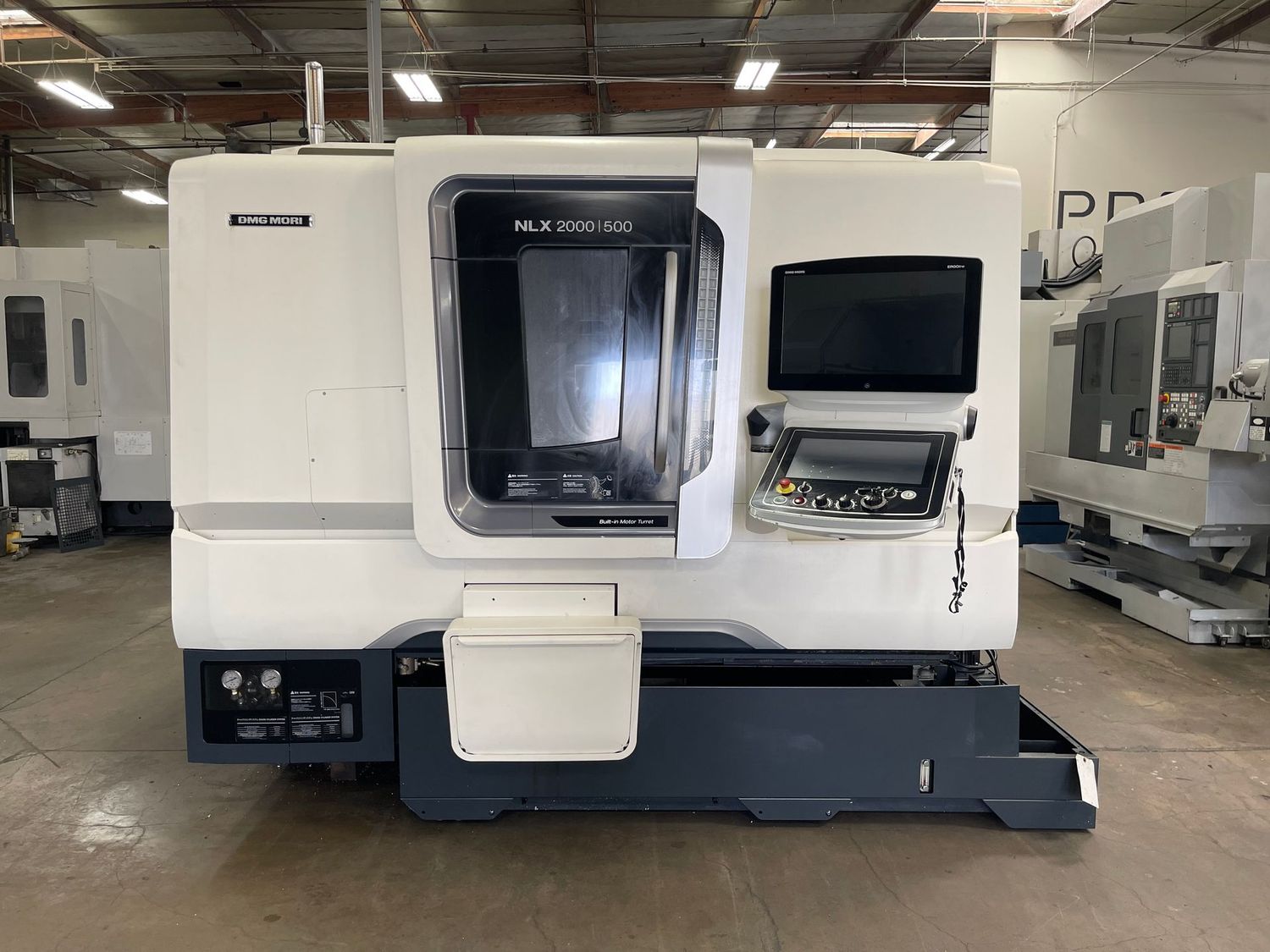

2019 DMG MORI NLX 2000SY/500

Specifications:

Swing Over Bed 36"/25"
Swing Over Cross Slide 29.7"
Max. Turning Diameter 10.9"
Max. Turning Length 20"
Bar Work Capacity 2.5"
Travels X/Z/Y/B 10.2/22.8/3.9 +- 2"/28.9"
Main & Sub Spindle Speed 5,000 / 6,000 Rpm
Through Spindle Hole Dia. 2.9"
Main / Sub Spindle Motors 30/20 15/10 HP
Turret Stations 12
Rotary Tool Speed . 10,000 RPM
Rotary Tool HP. 7.5
Rapid Traverse X/Z/Y 1181/393 IPM

Equipped With:

Celos ERGOline Touch M730UM CNC Control (Mitsubishi)
LNS Chip Conveyor
Parts Catcher
Collet Chucks Both Main and Sub
