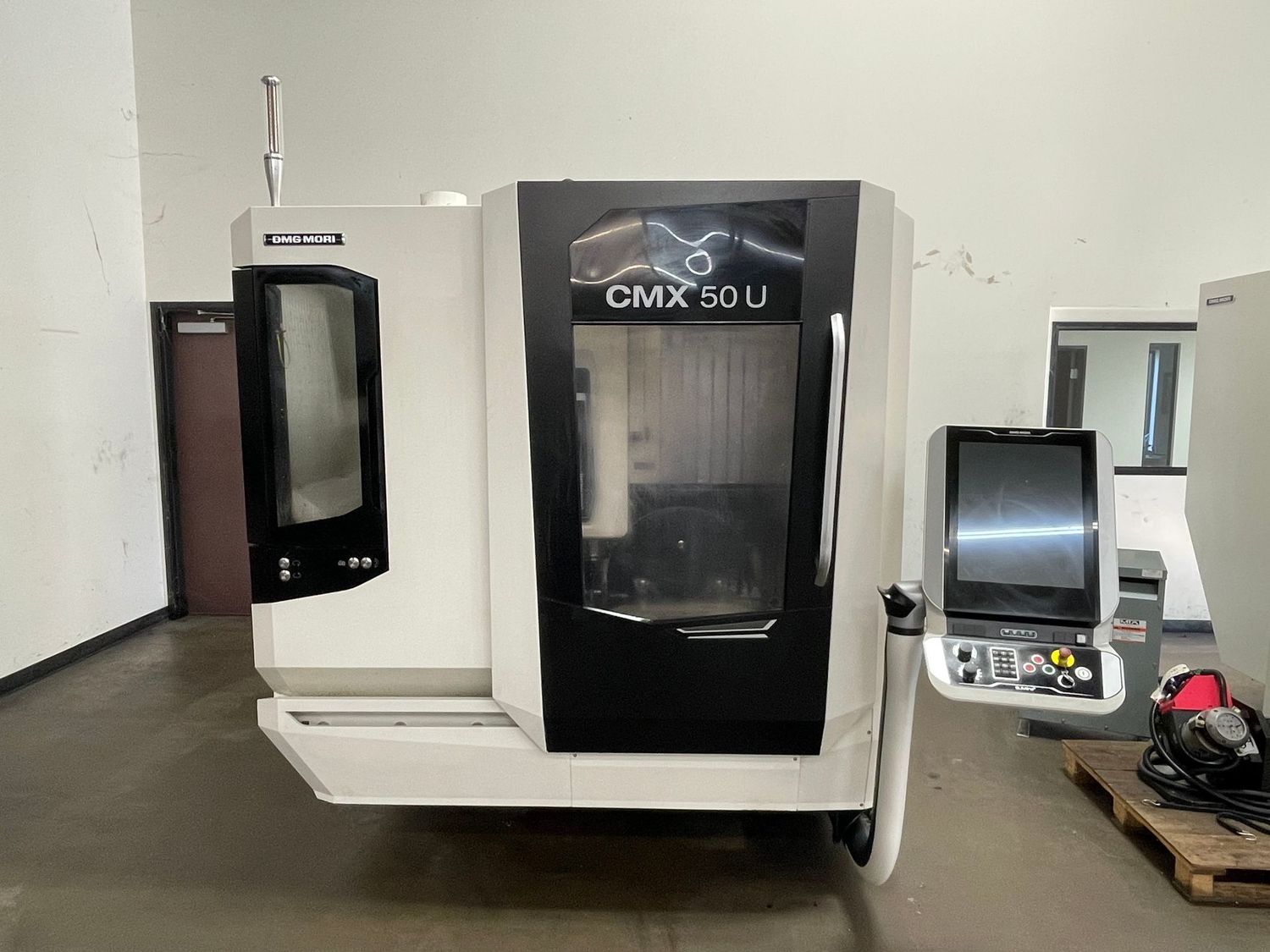

2019 DMG MORI CMX 50U

Specifications:

Travels (XYZAB) 19.7”/17.7”/15.8”
Spindle speeds 12,000 RPM
Taper CT-40
ATC 30
Max Tool Length 11.81”
Max Tool Weight 18 lbs
Tool Diameter 3.15”
Max Table Load Capacity 441 lbs
Max Loading Height 31.1”
Workpiece Mounting Surface 24.8”x19.69”
B Axis Swivel Range -5/+110 Degrees
Max Cutting Feed 98 ft/min
Rapid Traverse X/Y/Z 98/98/98 ft/min
Torque 61.2/42 ft lbs
Power 17.4 hp

Equipped With:

19” DMG MORI SLIMline Multi Touch Control Panel
Chip Conveyor
Renishaw Probe
