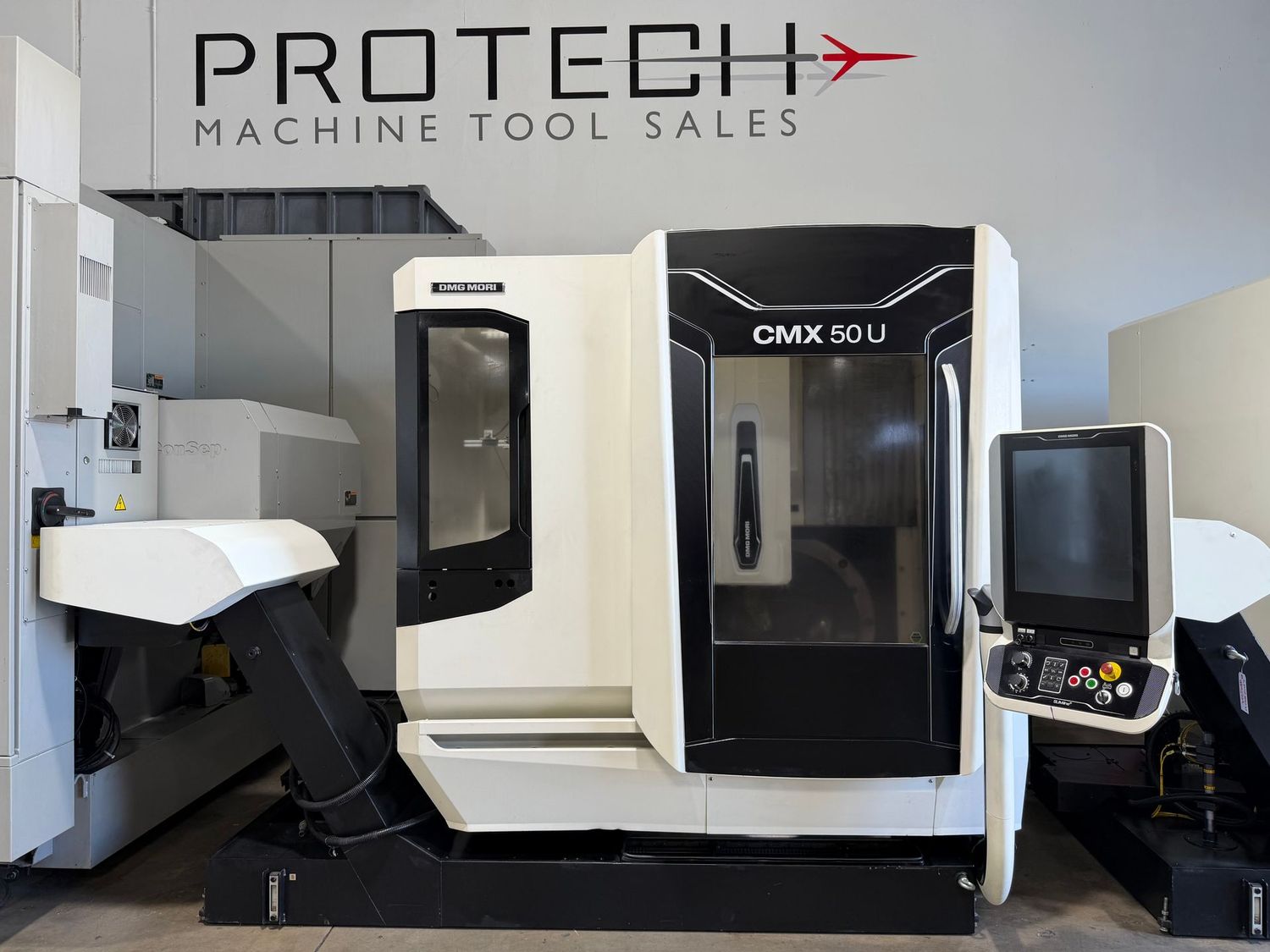

2017 DMG MORI CMX 50U

Specifications:

Travels (XYZAB) 19.7”/17.7”/15.8”
Spindle speeds 12,000 RPM
Spindle Taper CT 40
Tool Changer 30 Positions
Max Tool Length 11.81”
Max Tool Weight 18 lbs
Tool Diameter 3.15”
Max Table Load Capacity 441 lbs
Max Loading Height 31.1”
Workpiece Mounting Surface 24.8”x19.69”
B Axis Swivel Range -5/+110 Degrees
Max Cutting Feed 98 ft/min
Rapid Traverse X/Y/Z 98/98/98 ft/min
Torque 61.2/42 ft lbs
Power 20 HP

Equipped With:

Siemens SLIMline Multi Touch Control

Chip Conveyor
