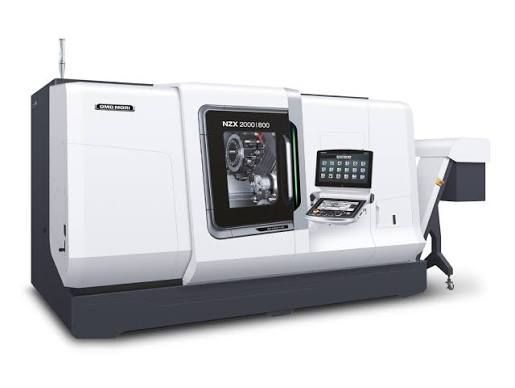

2016 DMG MORI NZX 2000SY/800 (3 Available

Specifications:

Swing Over Bed 31.5”
Max Turning Diameter 12.5”
Max Workpiece Delivery Dia 11.8”
Max Bar Work Capacity 2.5”
Travel X1/X2 8.2”
Travel Y1 4.3”
Travel Z1 /Z2 31.8”
Spindle 1 / 2 Speed 5,000 / 5,000 RPM
Spindle Nose 1 / 2 A2-6 / A2-6
Max Rotary Tool Speed 6,000 RPM
Through Spindle Hole 1 / 2 2.8”/2.8”
Turret Stations 1 / 2 16 / 16 All Live
Rapid Traverse X / Y / Z 1181.1” / 787.4” / 1,968.5” IPM
Chuck Size Main / Sub Collet Chuck / 6” 3 Jaw Hydraulic Chuck

EQUIPPED WITH:
Fanuc 31iB w/ CELOS ERGOline Control
Coolant Tank
Chip Conveyor
Rebel V-65 Barfeeder
Parts Unloader
