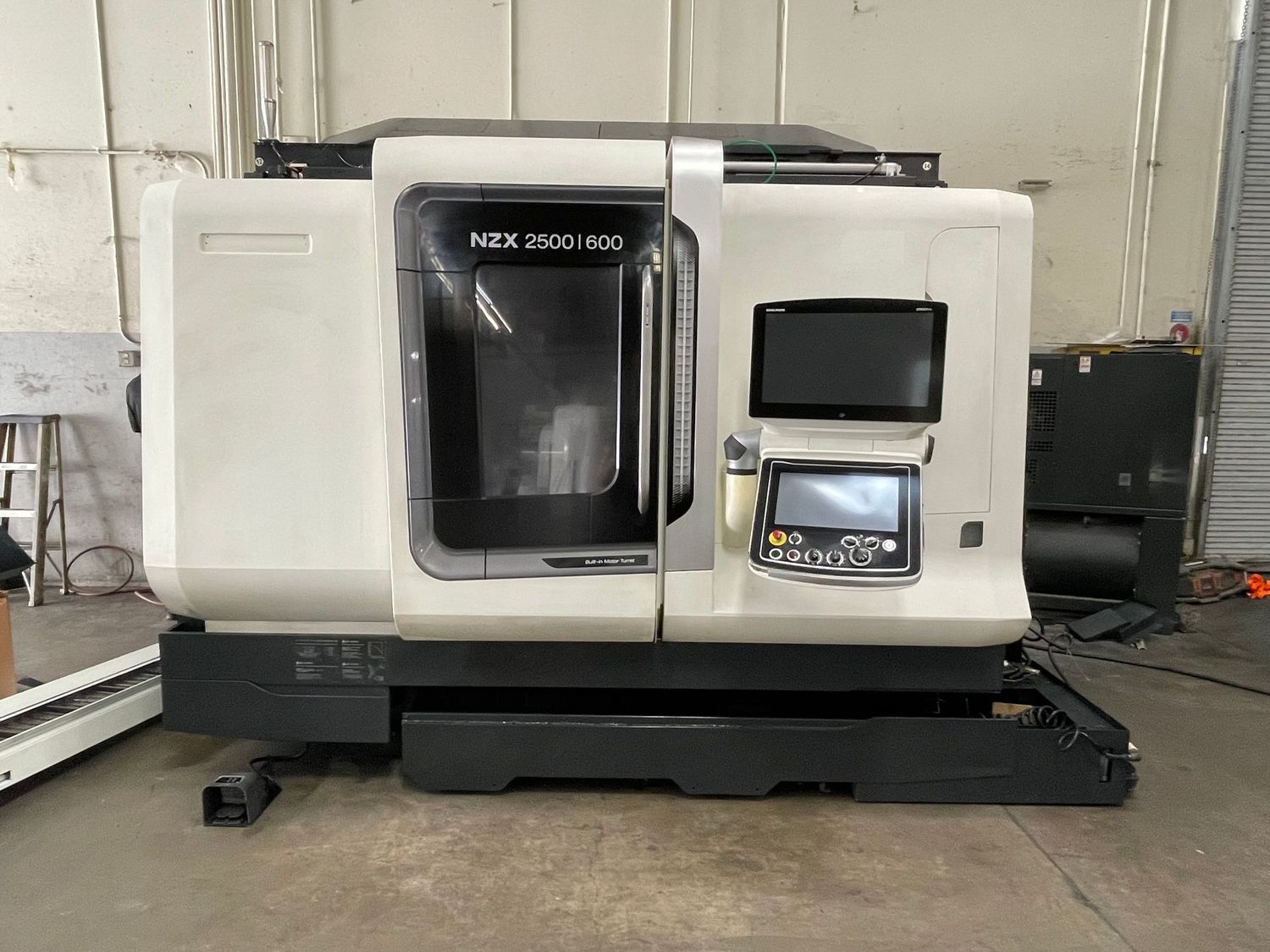

2015 DMG MORI NZX 2500Y/600 (2 Identical Available)

Specifications:

Chuck Size 10” Kitagawa
Swing Over Bed 30.7”
Max Turning Diameter 14.5”
Travel X1-X2/ Y/ Z1-Z2 8.8”-6.6”/1.9”/25.3”-23.6”
Max Spindle 4,000 RPM
Spindle Nose A2-8
Through Spindle Diameter 3.0”
Turret Type 1 & 2 12 & 8
Max Rotary Tool Speed 10,000 RPM
Rapid Traverse X1/X2 984.3 IPM Z1/Z2 1181 IPM
Tailstock Travel 23.6”
Spindle Drive Motor 30 HP

Equipped With:

CELOS Mitsubishi M-730UM
Tailstock
Tool Presetter
Chip Conveyor
Live Tooling Upper Turret
Y Axis Upper Turret
Chip Blaster High Pressure Coolant Unit
