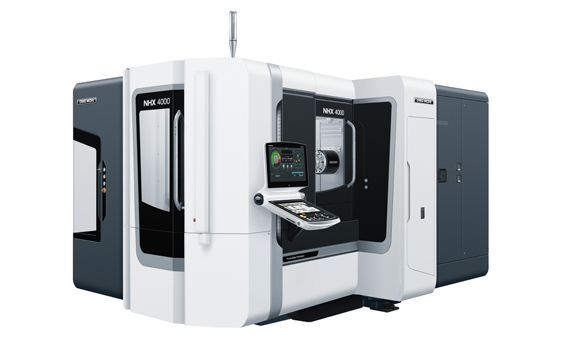

2015 DMG MORI NHX 4000

Specification:

Travels X/Y/Z: 22’/22”/26”
Distance Pallet Surface to Spindle Center 3.1" - 25.2"
Distance Pallet Center to Spindle Gage Plane 2.8" - 28.7"
Pallet Working Surface 15.7" x 15.7"
Pallet loading Capacity 880 LBS
Max Workpiece Swing Diameter 24.8"
Max Workpiece Height 35.4"
Spindle Speed 12,000 rpm
Rapid Traverse Rate X/Y/Z: 2,362.2 IPM
Spindle Taper 40
Tool Changer Positions 60
Horsepower 40

Equipped With:

Mitsubishi M 730UM CELOS ERGOline Control
Full 4th Axis
Chip Conveyor
All Available Manuals
