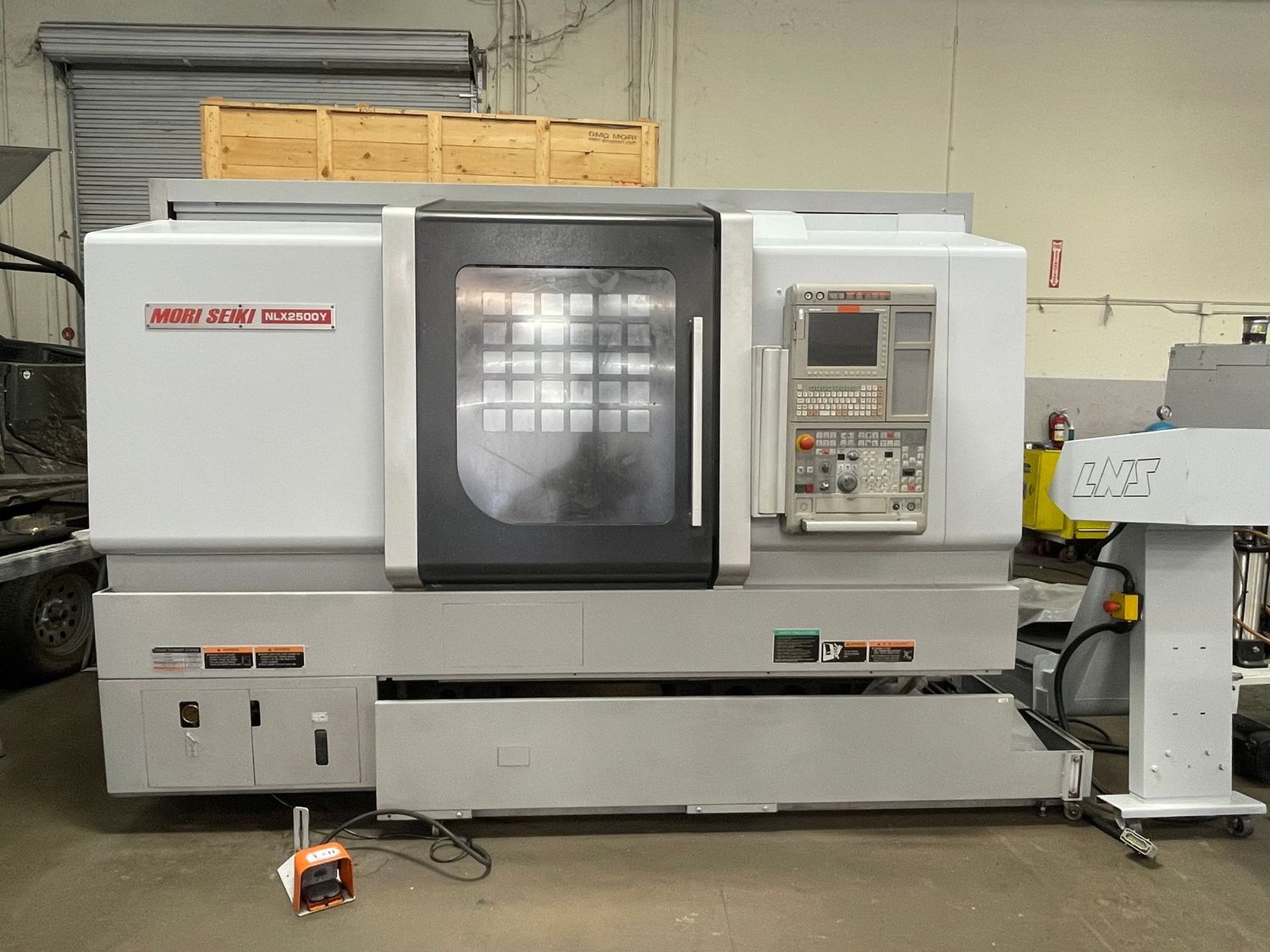

2011 MORI SEIKI NLX 2500Y/700

Specifications:
Swing Over Bed 36.2"
Swing Over Cross Slide 29.2"
Max Turning Diameter 14.0"
Max Turning Length 27.7"
Travel X/Y/Z 10.2”/+-2”/31.3”
Bar Capacity 3"
Spindle Bore Dia 3.5”
Max Spindle Speed 4,000 RPM
Rapid Traverse 1,181 IPM
Spindle Horsepower 25
Live Milling Speed 6,000 RPM
Turret Position 12 All Live
Chuck Size 10”
Spindle Nose A2-8

Equipped With:

M-730BM w/ MAPPS Control (Mitsubishi)
Programmable Tailstock
Chip Conveyor
All Available Tooling and Manuals
