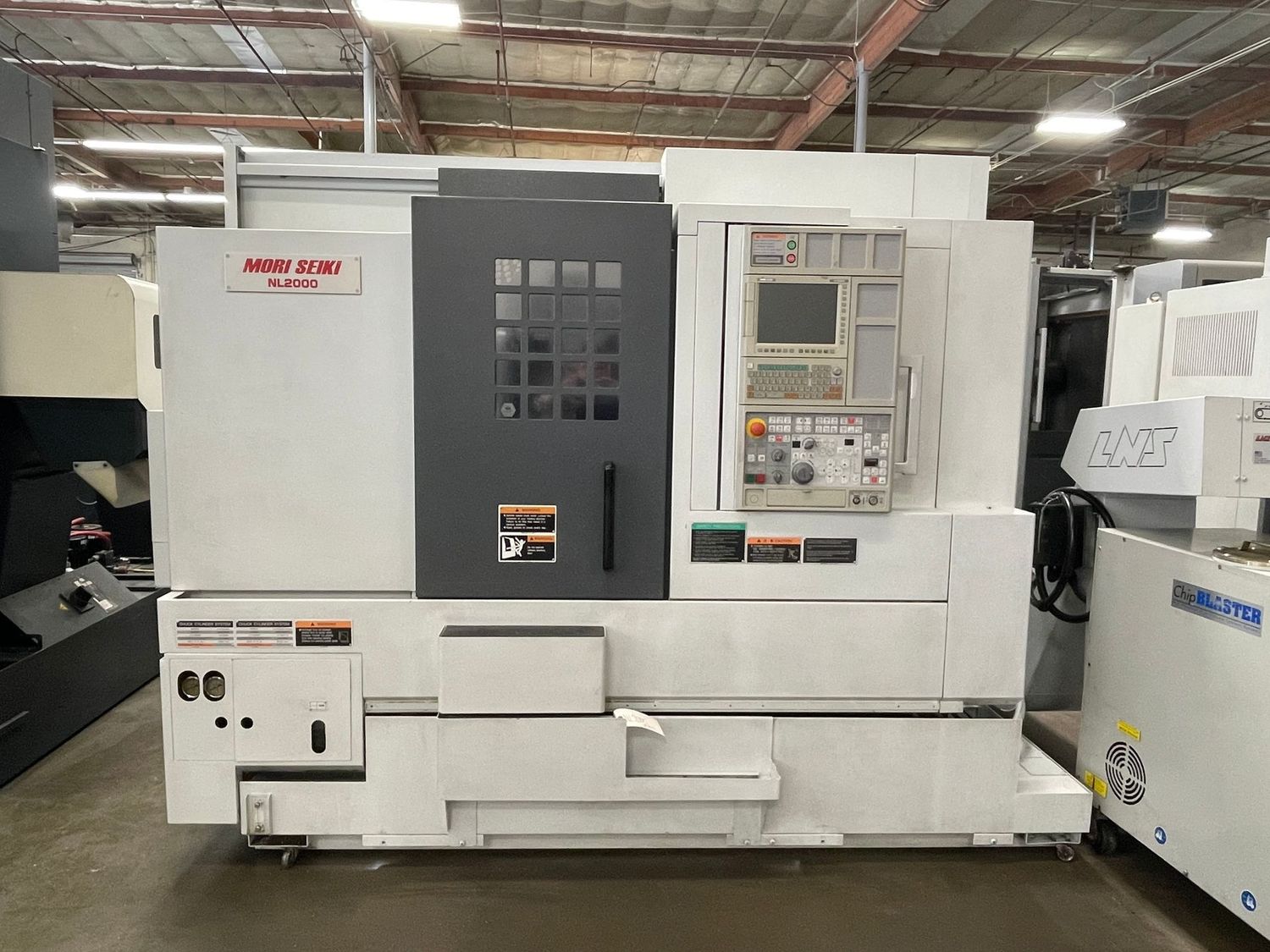

2011 MORI SEIKI NL 2000SY/500

Specifications:

Max Diameter Bar Capacity 2.5”
Swing Over Bed 36.4”
Max Turning Diameter 14.4”
Max Turning Length 20.0”
Spindle 20/15 HP
Spindle Speed 5,000 RPM
Spindle Nose A2-5
Turret Stations 20 All Live
Sub Spindle Motor 15/10 HP
Travels X/Y/Z 10.2”/ + -2.0”/ 23.2”

Equipped With:
M-720BM (MITSUBISHI)
Collet Chucks Both Main and Sub
Tool Presetter Main & Sub
6” & 8” Chuck
2 -16 Collet Chucks
High Pressure Unit
Chip Conveyor
