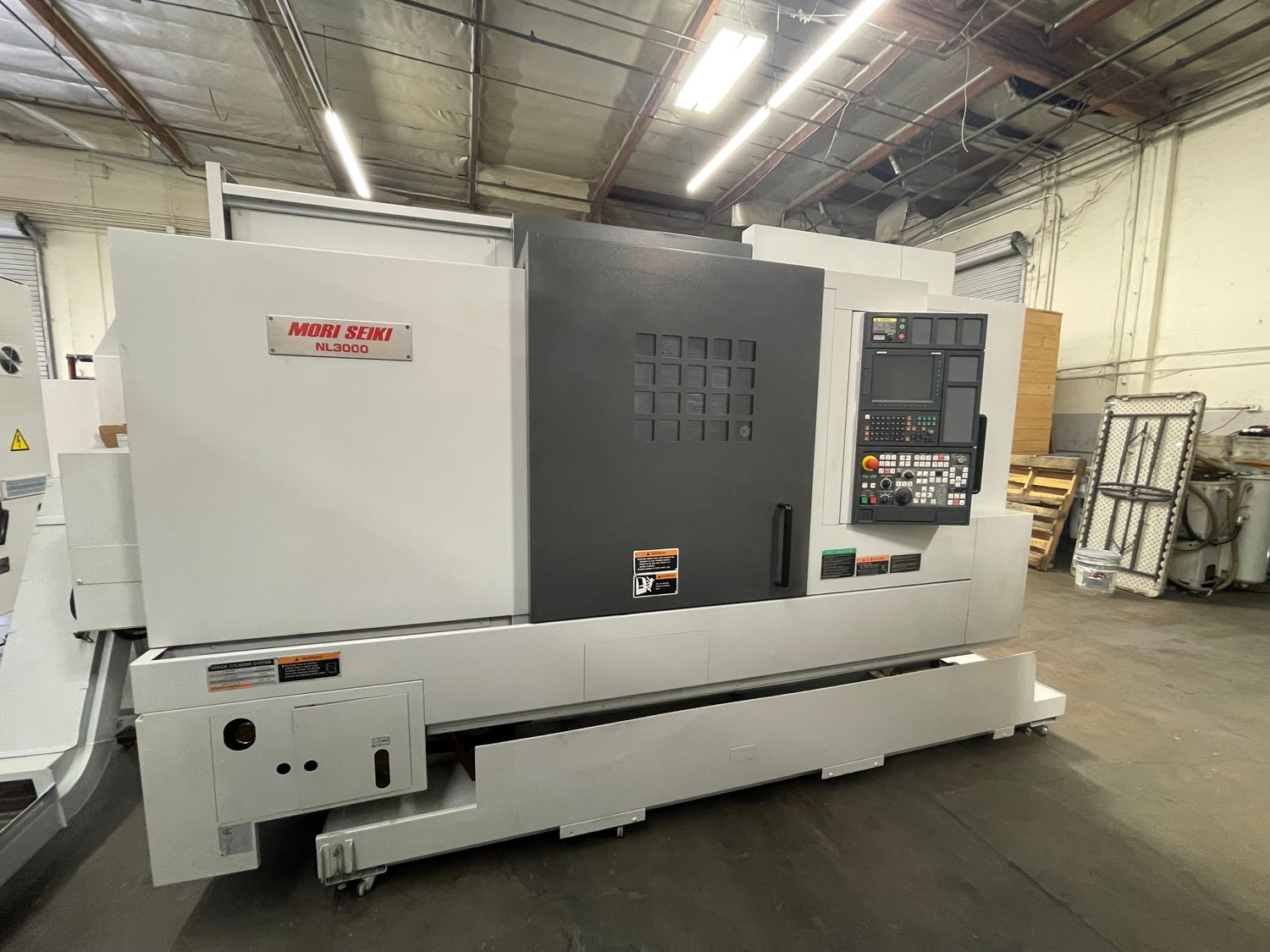

2010 MORI SEIKI NL-3000MC/700

SPECIFICATIONS:

Swing Over Bed 39.2"
Swing Over Cross Slide 32.5"
Maximum Turning Diameter 16.5"
Maximum Turning Length 28"
X-Axis Travel 11"
Z-Axis Travel 32.3"
Chuck Size 12”
Max Main Spindle Speed 3,000 RPM
Live Milling Max Spindle Speed ..6,000 RPM
Spindle Drive Motor 40 hp
Bar Work Capacity 3.5"
Through Spindle Hole Diameter 4.1"
Spindle Nose A2-8
Min Spindle Indexing Angle (C-Axis) 0.001 Degrees
Tailstock Travel 28.9”
Turret 12 Positions

Equipped With:
MSX-850-III w/ MAPPS Control (FANUC)
Chip Conveyor
Tailstock
