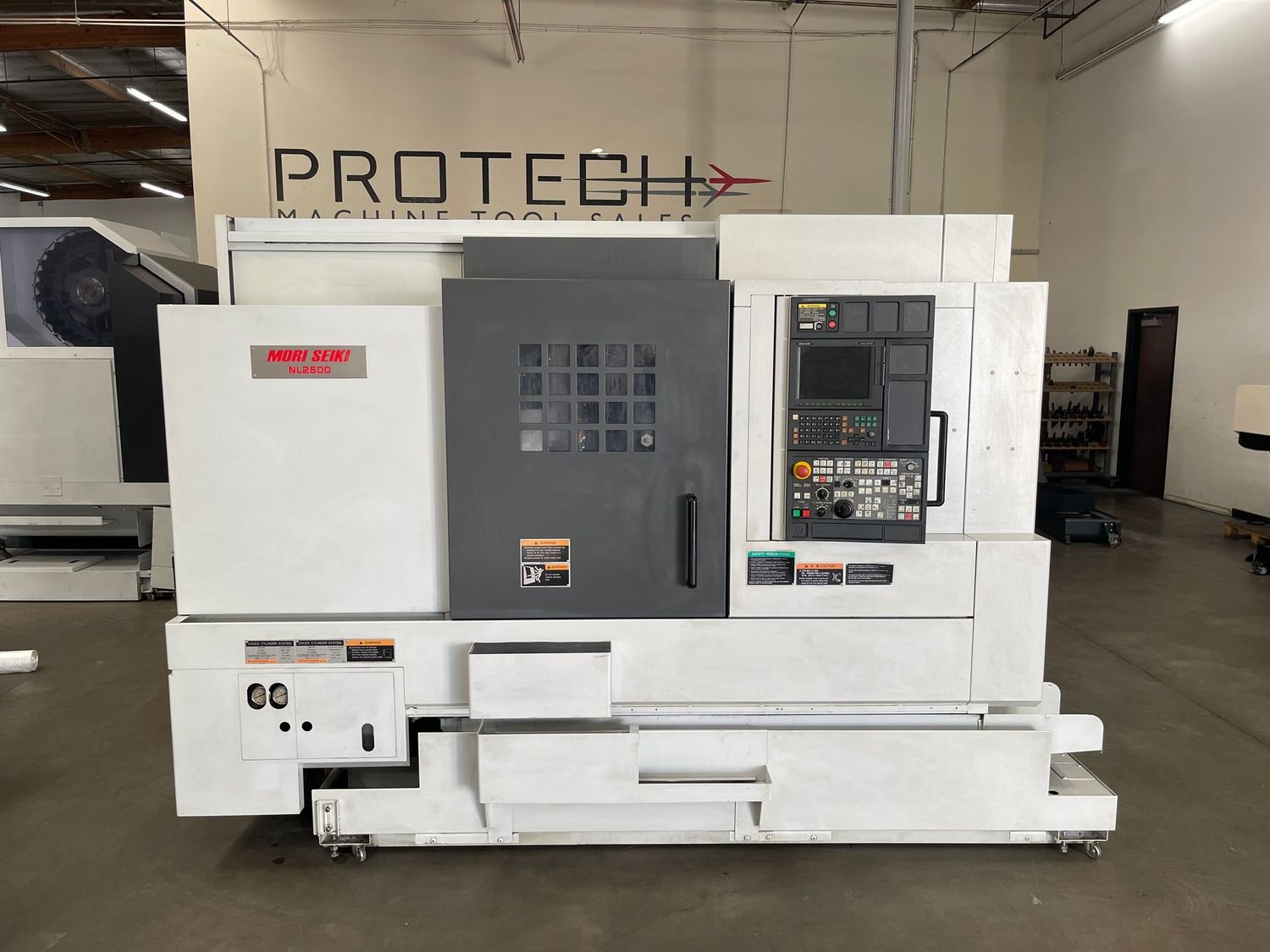

2009 MORI SEIKI NL 2500SY/700

SPECIFICATIONS:

Swing Over Bed: 36.4"
Swing Over Front Cover: 29.7"
Max. Turning Diameter: 14"
Max. Turning Length: 27.7"
Bar Work Capacity: 3.1"
Main Spindle Chuck Size: 10”
Sub Spindle Chuck Size 6”
X Axis Travel: 10.2"
Y Axis Travel: 3.9<+/-2.
Z-Axis Travel: 31.3"
Max. Spindle Speed, Main: 4,000 RPM
Max. Spindle Speed , Sub: 6,000 RPM
Main Spindle Nose: A2-8
Sub Spindle Nose: A2-5
Thru Spindle Hole Dia., Main: 3.6"
Thru Spindle Hole Dial, Sub: 1.7"
Number of Tool Stations: 12
Max. Rotary Tool Speed: 6,000 RPM
Main Spindle Drive Motor: 25/20 HP
Sub Spindle Drive Motor: 15/10 HP
Rotary Tool Drive Motor: 7.5/5 HP

Equipped With:

MSX-850 w/ MAPPS Control (Mitsubishi)
Parts Catcher
Main and Sub Spindle Pre Setter
Chip Tray
All Available Tooling and Manuals
