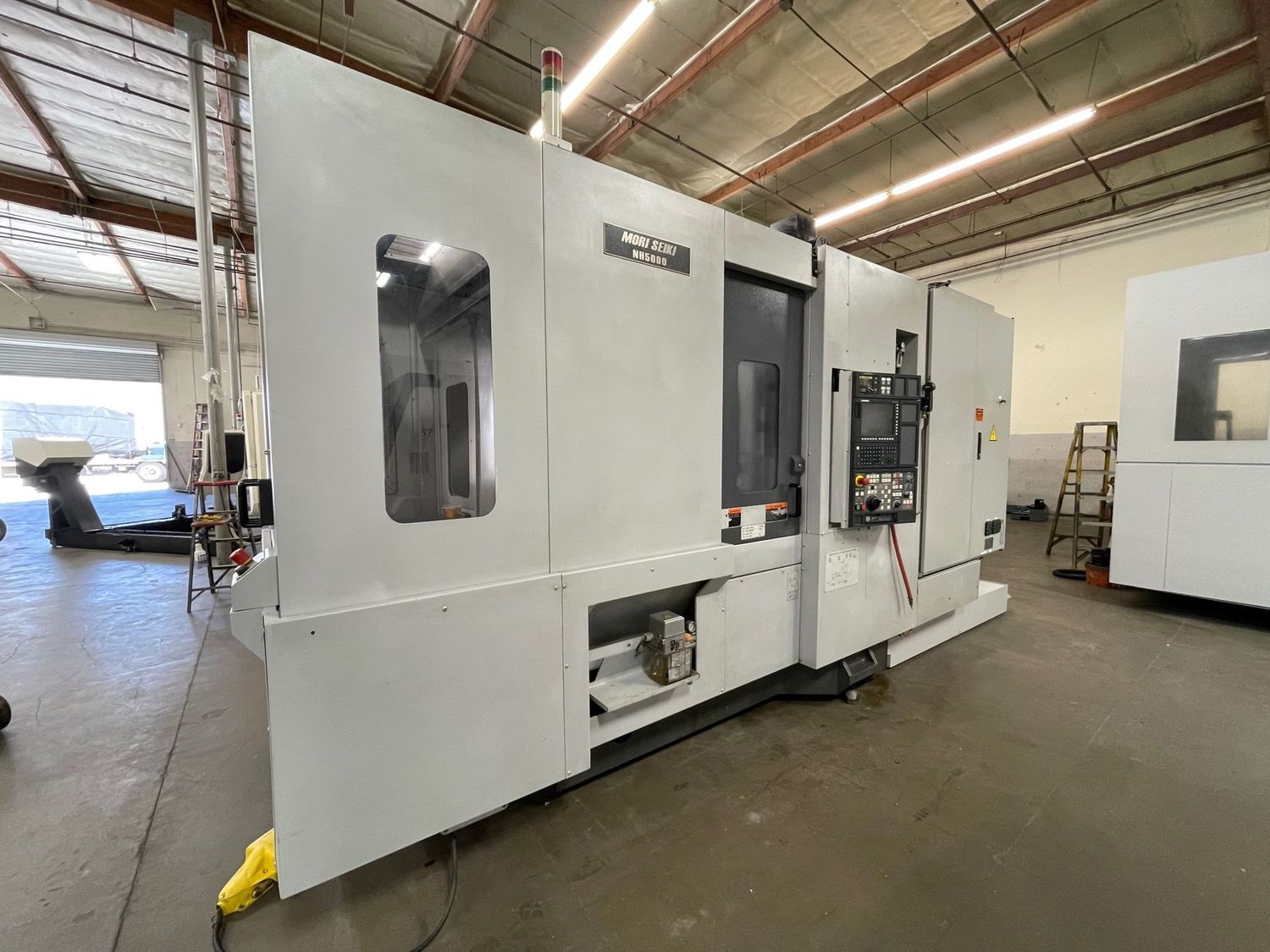

2003 MORI SEIKI NH-5000

Specifications:

X Axis Travel 24.8″
Y Axis Travel 23.6″
Z Axis Travel 26.4″
Pallet Surface to Spindle Center 2″ – 25.6″
Table Center to Spindle Gauge Plane 3.9″ – 30.3″
Pallet Size 19.7″ x 19.7″
Number of Pallets 2
Max Pallet Load 1,100 LBS
Pallet Index Time 2 Sec
Spindle Motor 30 HP\
Speed 14,000 RPM
Spindle Taper 40
Tool Changer Capacity 30 ATC
Machine Dimensions 195″ x 95″ x 115″
Machine Weight 25,000 lbs.

Equipped with:

MSX-501III w/ MAPPS (Fanuc)
One Degree Indexing
Chip Conveyor
